TUV LED Panel Light

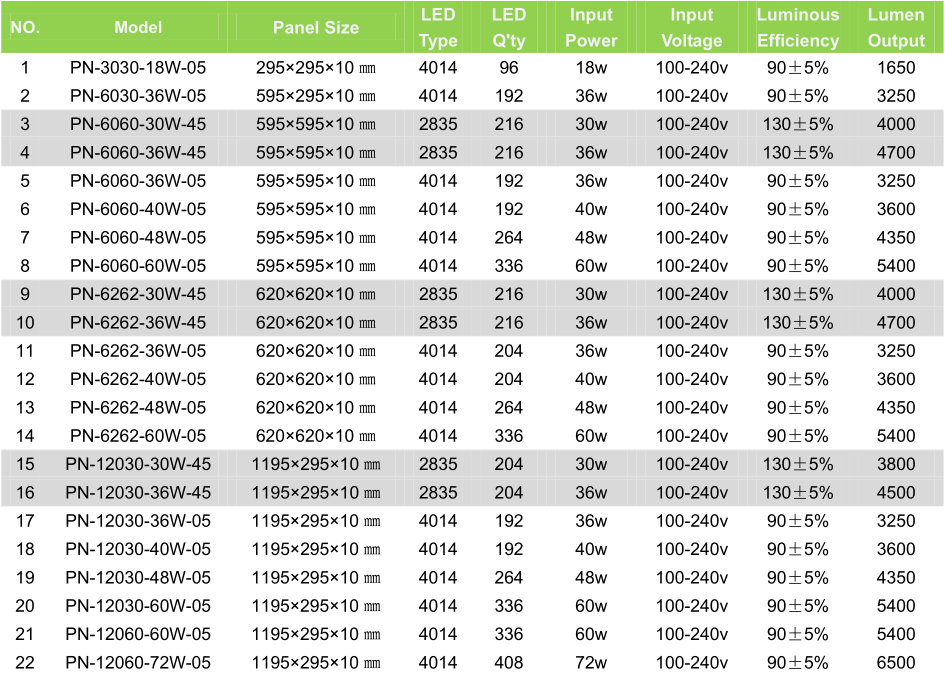

Specifications:

Optical Parameters:
■LED chip: Epistar
■LED type: SMD 4014 or SMD2835
■CCT : 3000±300K& 4000±250K & 6000±300K
■CRI: >80 Ra
■Material: Aluminium +PS
■IP rate  IP42
■Beam Angle: 120°
■Warranty: 2 years

Electrical Parameters
■Dimmable:  Non-dimmable
■Driver:TUV/SAA /CE Certificate approved
■Input Voltage: AC100-240V&220-240V
■Freqency Range:50-60Hz
■Power Factor :>0.92
■THD<18%

Features:

Super slim and efficient design
* Unltra-thin, thickness of 10mm
* weighs less than 10kg / square meter.
* Luminous uniformity one square feet uniformity > 90%

With high quality 0.2W SMD4014/2835
* Epistar chips
* RA>80
* LM-80 Approved
* Different color temperature for your option
3000K & 4000K & 6000K

Beam angle:﹥120° IP42  CLASSⅡ

Different installation ways
Installation options: Build-in, suspended,surface mounting

Fixtures Aluminum housing
* Aluminum alloy housing for excellent heat dissipation,decline lighting Fade
* Color:white power coating RAL9016

Guide Plate
2.5/3.0mm PS light guide plate lowers lamp weight, imported from Taiwan

Diffusion Plate
High light transmittance PS diffusion plate

Power: TUV, CE, SAA, CB  Certification
* Isolated powers
* PF>0.92
* Driver efficiency >88%
* AC100-240V / AC220-240V with GreenSo Driver,
2 years warranty
