ETL LED Panel Light

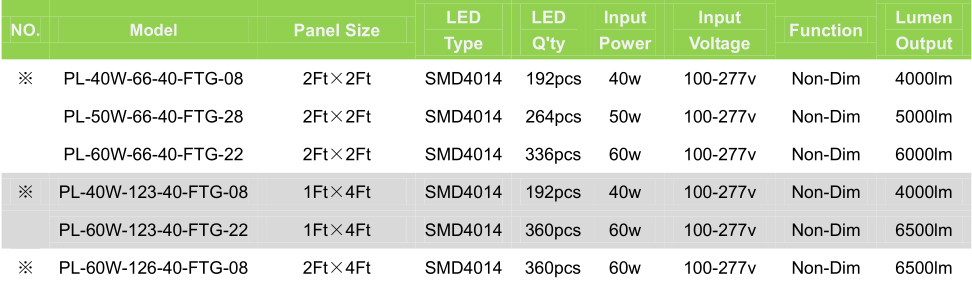

Specifications:

Features:

Super slim and efficient design
* Unltra-thin, thickness of 10mm
* weighs less than 10kg / square meter.
* Luminous uniformity one square feet uniformity > 90%

With high quality 0.2W SMD4014
* Epistar chips
* RA>80
* LM-80 Approved
* Different color temperature for your option
3000K & 4000K & 6000K

Beam angle:﹥120° IP42  CLASS P

Different installation ways
Installation options: Build-in, suspended,surface mounting

Fixtures Aluminum housing
* Aluminum alloy housing for excellent heat dissipation,decline lighting Fade
* Color:white power coating RAL9016

Guide Plate
2.5/3.0mm PMMA light guide plate lowers lamp weight, imported from Taiwan

Diffusion Plate
High light transmittance PS diffusion plate

Power: UL, FCC, Class P Certification
* 0-10V/PWM/RX Dimmable / Non-Dimmable
* No Flicker
* PF>0.92
* Driver efficiency >88%
* AC100-277V / AC90-347V
* 3 years warranty
