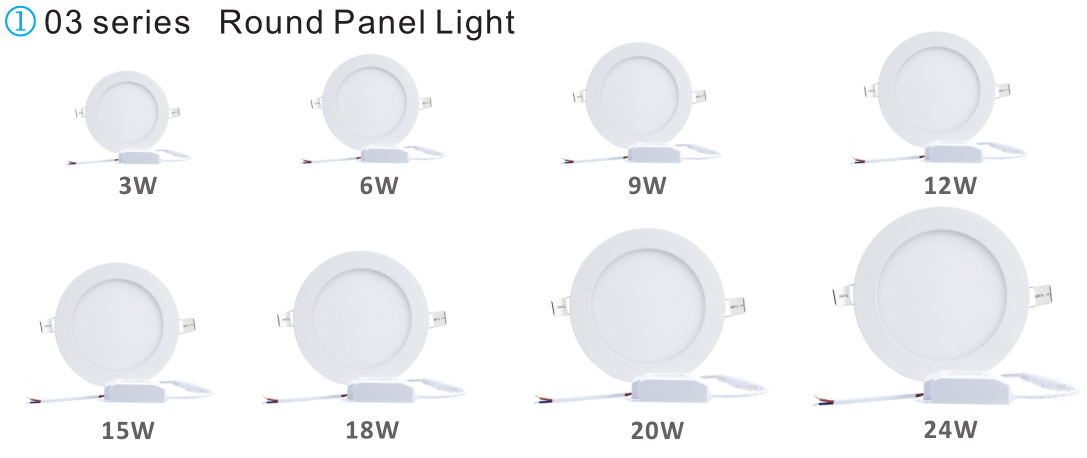

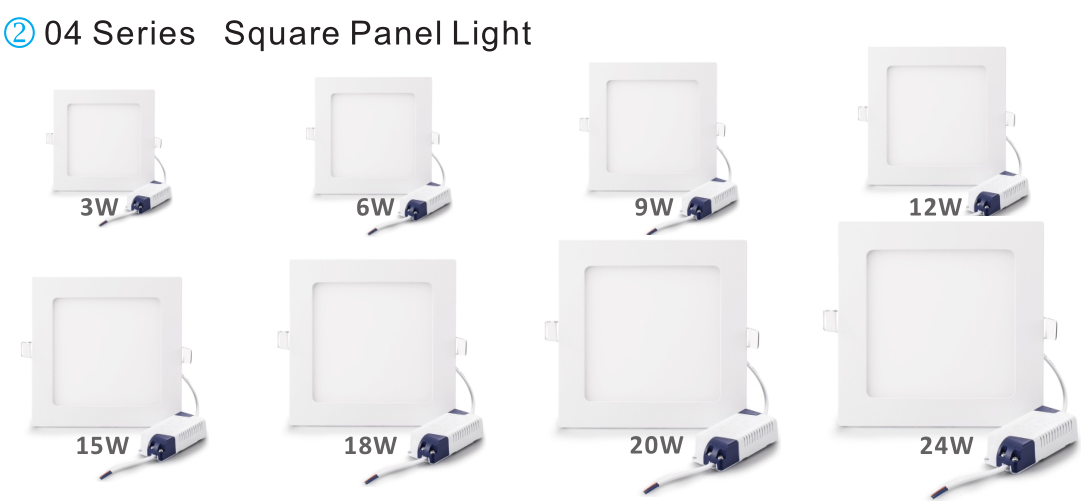

Small LED Panel Light


1. Super slim and efficient design
* Ultra thin design, the panel light exactly
embedded ceiling, makes the ceiling flat.
* Luminous uniformity one square feet uniformity > 90%
2. With high quality 0.2W SMD2835
* Epistar chips
* RA>80
* LM-80 Approved
* Different color temperature for your option 3000K & 4000K & 6000K
3. Beam angle:﹥150°, IP20 CLASSⅡ, Male to female docking connector
Driver power and light body interface with buckle design easy disassembly, to provide support for future upgrades, maintenance.

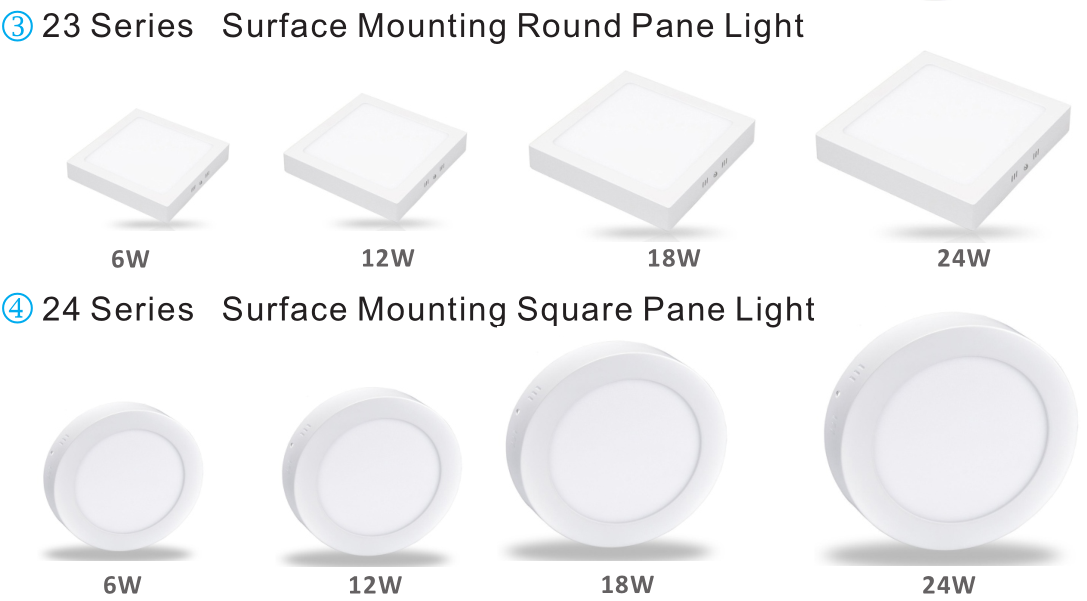

4. Different installation ways
Installation options: Build-in, Surface Mounting.
5. Fixtures Aluminum housing
* Aluminum alloy housing for excellent heat dissipation,decline lighting Fade
* Color:white power coating RAL9016
6. Professional optical guide plate
The use of imported nano-diffusion light guide plate, the light transmittance of more than 95%, pure color light, no glare, stable performance can effectively overcome the yellow spot LED phenomenon.
7. Diffusion Plate
Imported reflective materials, uniform lighting 100% dark area performance and stability.
8. Power: TUV、CE、SAA 、CB FCC Certification
* Isolated powers
* PF>0.6 or PF>0.90
* Driver Efficiency >88%
* AC100-277V / AC90-135V / AC180-265V
* Non-Diming / Triac Dimmable
